Product Name: Hydraulic multifunctional mixer

Pro files

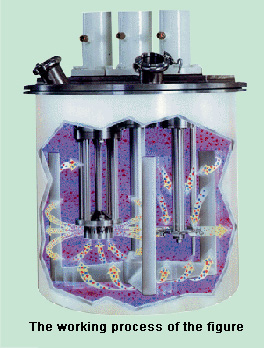

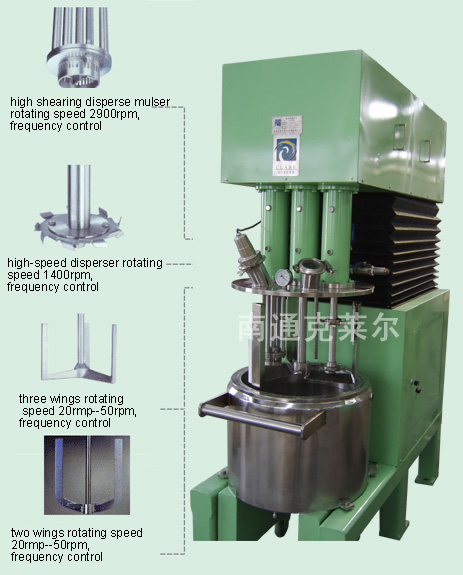

It is made up of high shearing disperse mulser,high-speed disperser and special anchor agitator so that its model changes a lot. When the high shearing disperse mulser sprays water from the bottom to the level, anchor agitator will squarecut it in the different lay which slows down the level speed. High-speed disperser will make further disperse and crash.So multifunctional mixer strengthen the function of emusifying,dispersing,homogeneity,mixing and pulverizing.It has better performance, which called “universal machine with excellent function” in foreign countries. It is like a whole processing factory, three equipments can be exclusive used which supply effective mixing,homogeneity and emusifying function for fine chemical engineering,cosmetic and medicine industry.

Option:
◆Working volume from 10L to 10000L
◆Normal pressure or vacuum processing
◆Hot and cold clip for selection
◆Specially electric controller
◆Different material of equipment for selection
◆Fixed install or hydraulic elevating for selection

Hydraulic elevating structure drawing

A Three blenders structure combination

B Two blenders structure combination

multifunctional structure and parameters

Model	handling capacity (L)	equipped electric power(KW)			Speed			bucket measurement
Model	handling capacity (L)	Mulser	anchor agitator	disperser mulser	Mulser	anchor agitator	disperser mulser	diameter（mm）	height（mm）
DME-50	50L	1.1	0.75	1.1	2900	0-85	0-1440	450	340
DME-100	100L	4	2.2	3	2900	0-85	0-1440	600	450
DME-200	200L	4	3	4	2900	0-60	0-1440	700	520
DME-500	500L	7.5	5.5	7.5	2900	0-60	0-1440	900	800
DME-1000	1000L	18.5	7.5	11	2900	0-60	0-1440	1250	820
DME-1500	1500L	22	11	18.5	1440	0-60	0-1440	1400	1000
DME-2000	2000L	37	18.5	22	1440	0-60	0-1440	1500	1400

Notice:
1.All the above datas are for reference, detailed parameters depends on user dielectric property and working condition.
2.If two blenders are combined,it is better to reduce barrel diameter and increase barrel height.
